Multilayer Ceramic Capacitors
Radial-Leaded SSM Series
Features
Flame retardant epoxy.
6.3V, 10V, 16V, 25V, 50V, 100V ~ 3KVDC.
NPO, X5R, X7R, Y5V Temperature coefficients.
High Capacitance in miniature size, high performance, and high reliability.
Radial Type Lead Material: Tinned copper wire or Tinned copper clad steel wire (CP wire).
Specifications
|
NPO
|
X5R
|
| Rated Voltage
|
6.3VDC ~ 3000VDC
|
| Capacitance Range
|
1pF to 100μF
|
Capacitance Tolerance
Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF
|
B = ±0.1pF
C = ±0.25pF
D = ±0.5pF
F = ±1%
G = ±2%
J = ±5%
|
J= ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
|
Operating Temperature
|
-55℃ ~ +125℃
|
- 55℃ ~ +85℃
|
| Capacitance Change
|
0 ± 30ppm/℃
|
±15%
|
Capacitance Test:
@25℃ or referred to +25℃
|
1.0Vrms±0.2, 1kHz±10%
1.0Vrms±25, 1MHz±10% for
capacitance ≤ 1000pF
|
1.0±0.2Vrms, 1kHz±10%
|
| Q/Dissipation Factor
|
C＜30pF: Q ≥ 400 + 20C
C ≥ 30pF: Q ≥ 1000
0.1% Max.
|
≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
|
| Insulation Resistance
|
10GΩ or 500MΩ.μF, whichever is less at 25℃
|
| Dielectric Strength
|
≤ 50V
250% of rated voltage for 5 seconds at 50mA
51V ~ 100V
250% of rated voltage for 5 seconds at 10mA
200V ~ 300V
200% of rated voltage for 5 seconds at 10mA
500V ~ 990V
150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V
120% of rated voltage for 5 seconds at 10mA
|
|
X7R
|
| Rated Voltage
|
6.3VDC ~ 3000VDC
|
| Capacitance Range
|
1pF to 100μF
|
Capacitance Tolerance
Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF
|
J = ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
|
| Operating Temperature
|
-55℃ ~ +125℃
|
| Capacitance Change
|
±15%
|
Capacitance Test:
@25℃ or referred to +25℃
|
1.0±0.2Vrms, 1kHz±10%
|
| Q/Dissipation Factor
|
≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
|
| Insulation Resistance
|
10GΩ or 500MΩ.μF, whichever is less at 25℃
|
| Dielectric Strength
|
≤ 50V
250% of rated voltage for 5 seconds at 50mA
51V ~ 100V
250% of rated voltage for 5 seconds at 10mA
200V ~ 300V
200% of rated voltage for 5 seconds at 10mA
500V ~ 990V
150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V
120% of rated voltage for 5 seconds at 10mA
|
Dimensions

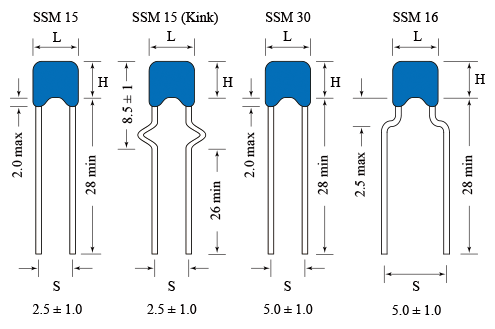

Lead Configuration (Unit: mm)
| Style
|
L Max.
|
H Max.
|
T Max.
|
s
|
d
|
| SSM 15
|
5.0
|
3.8 |
2.5 |
2.5 |
0.5 |
| SSM 16
|
5.0 |
3.8 |
2.5 |
5.0 |
0.5 |
| SSM 20
|
5.5 |
5.0 |
3.5 |
2.5 |
0.5 |
| SSM 21
|
5.5 |
5.0 |
3.5 |
5.0 |
0.5 |
| SSM 30
|
7.5 |
7.5 |
4.0 |
5.0 |
0.5 |
Dimensions (Unit: mm)
| Style
|
WVDC
|
NPO
|
X7R/X5R
|
Y5V
|
| SSM 15
|
6.3V ~ 3000V
|
1pF ~ 0.01μF
|
150pF ~ 1.0μF
|
1000pF ~ 10μF
|
| SSM 16
|
6.3V ~ 3000V
|
1pF ~ 0.01μF
|
150pF ~ 1.0μF
|
1000pF ~ 10μF
|
| SSM 20
|
6.3V ~ 3000V
|
1pF ~ 0.015μF
|
150pF ~ 22μF
|
1000pF ~ 22μF
|
| SSM 21
|
6.3V ~ 3000V
|
1pF ~ 0.015μF
|
150pF ~ 22μF
|
1000pF ~ 22μF
|
| SSM 30
|
16V ~ 3000V
|
10pF ~ 0.033μF
|
1000pF ~ 22μF
|
0.01μF ~ 100μF
|
Capacitance Range
Radial Type Taping
| Symblo
|
MIM.
|
TOL.
|
| L
|
8.0(Max.)
|
|
| T
|
4.0(Max.)
|
|
| d
|
0.5
|
+0.06
-0.05
|
| P
|
12.7
|
±1.0
|
| P0
|
12.7
|
±0.2
|
| P1
|
3.85
|
±0.5
|
| P2
|
6.38
|
±1.0
|
| F
|
5.0
|
+0.8
-0.2
|
| △h
|
0
|
±1.0
|
| Symblo
|
MIM.
|
TOL.
|
| W
|
18.0
|
±0.5
|
| W0
|
13.0
|
±0.5
|
| W1
|
9.0
|
±0.5
|
| W2
|
3(Max.)
|
|
| H0
|
16.0
|
±0.5
|
| H1
|
32.25(Max.)
|
|
| D0
|
4.0
|
±0.2
|
| t
|
0.7
|
±0.2
|

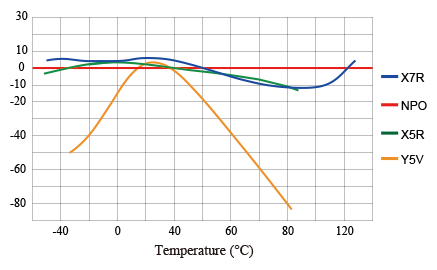

Typical Characteristics Chart
